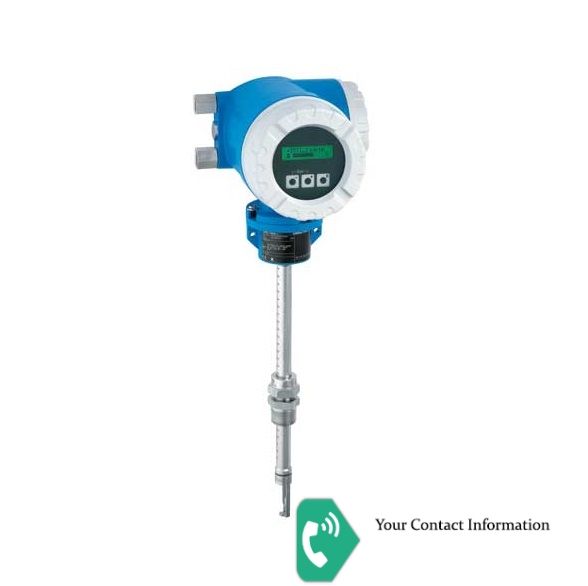

Proline t-mass 65I
Thermal mass flowmeter
20=Insertion Tube Length : 235 mm 9"
A=Material Insertion Tube; Sensor : Stainl. steel; Stainl. steel
A=Process Connection : 1" MNPT, thread ANSI, compression fitting, Stainl. steel
0=Seal : PEEK, -40...+130oC/-40...+266oF
A=Surface cleaning: Basic version
D=Calibration : Factory calibration
1=Additional Test, certificate : Basic version
R=Approval : FM NI Cl.I Div.2/CSA Cl.I Div.2, ABCD + Zone 2
A=Housing: Compact Alu, IP67 NEMA4X
B=Cable Entry: Thread NPT 1/2
A=Display; Operation: 85-260VAC, 2-line + push buttons
C=Adjustment; Software Feature: Gas (customer specific)
A=Output, Input: 4-20mA HART + frequency
