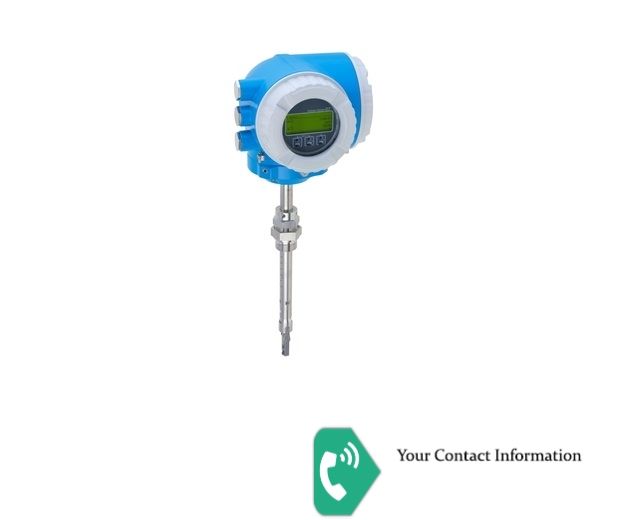

Thermal mass flowmeter
t-mass I 300, 6I3BL1, 235mm 9"
AA=Approval; Transmitter + Sensor:Non-hazardous area
I=Power Supply:100-230VAC/24VDC
BA=Output; Input 1: 4-20mA HART
A=Output; Input 2: W/o;
A=Output; Input 3: W/o;
F=Display; Operation: 4-line illum.; touch control
A=Housing: Alu, coated
A=Electrical Connection: Gland M20
SA=Sensor Version; Sensor; Insertion Tube: Unidirectional; stainl. steel; stainl. steel
GA2=Process Connection: G1", ISO 228/1, compression fitting
AB=Seal: PEEK, FKM, -40...+140oC
G=Calibration Flow: Factory calibration
A2=Device Model:2
AA=>Operation Language Display: English
D2=>>Customized Parameterization: Other gas
HB=>>Service: Verified cleaned, O2 service suitable (wetted parts), declaration
JA=>>Test, Certificate: Inspection certificate 3.1, EN10204 (material certificate wetted parts)
PB=>>Accessory Enclosed: Weather protection cover
PC=Mounting boss, G1A
