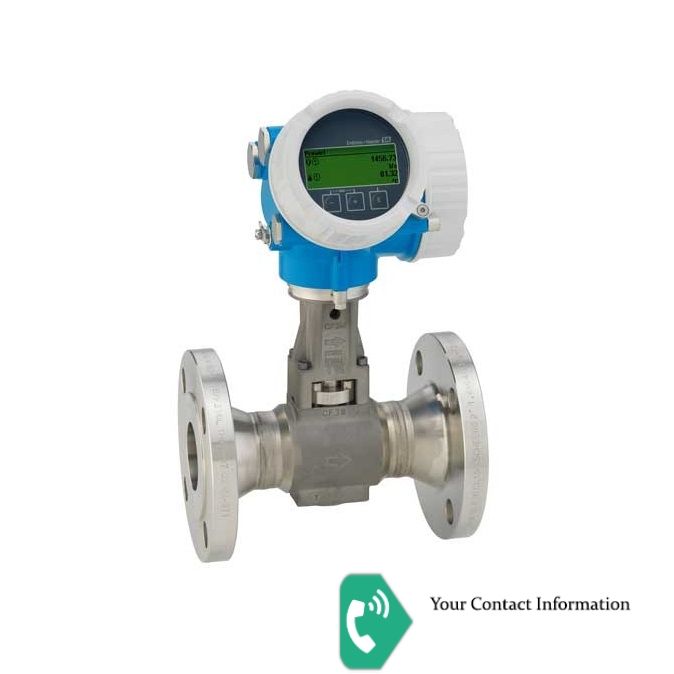

Vortex flowmeter
Proline Prowirl F 200, 7F2C1H, DN100 4"
AA=Approval: Non-hazardous area
A=Output; Input: 4-20mA HART
C=Display; Operation: SD02 4-line; push buttons + data backup function
J=Housing: GT20 dual compartment,alu,coated,remote
B=Cable, Remote Version: 5m/15ft
A=Electrical Connection: Gland M20
DA=Sensor Version; DSC-Sensor; Meas. Tube: Mass steam; 316L; 316L (integrated pressure-/temp.measurement), -200...+400oC/-328...+750oF
A=DSC-Sensor Seal: Graphite, -200oC… +400oC, -328oF…752oF
D=Pressure component: Pressure cell 10bar/145psi abs
AAS=Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
K=Calibration Flow: 0.75% volume 3-point
A1=Device Model: 1
