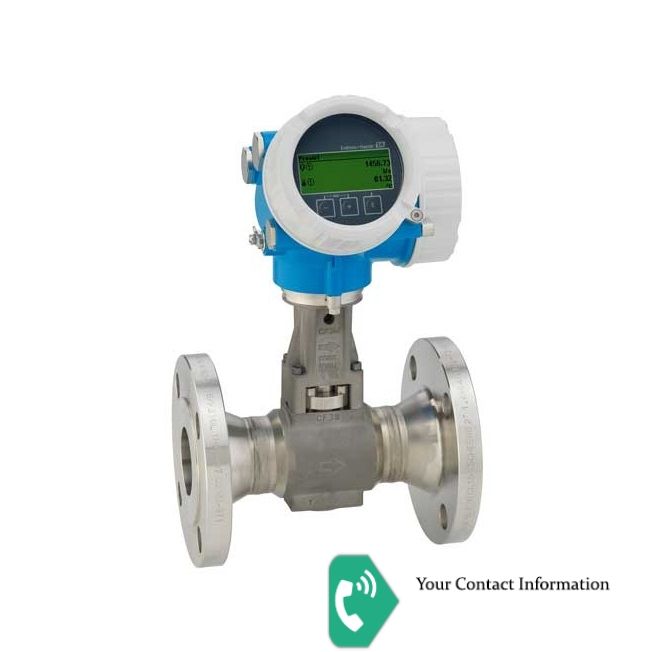

Vortex flowmeter
Prowirl F 200, 7F2C80, DN80 3"
BC=Approval: ATEX II1/2G Ex db[ia] IIC
D=Output; Input: 4-20mA HART, pulse/freq./switch; 4-20mA input
E=Display; Operation: SD03 4-line, illum.; touch control + data backup function
C=Housing: GT20 dual compartment,alu,coated,compact
A=Cable, Remote Version: Not used
D=Electrical Connection: Thread NPT1/2
CA=Sensor Version; DSC-Sensor; Meas. Tube: Mass; 316L; 316L (integrated temperature measurement), -200...+400oC/-328...+750oF
A=DSC-Sensor Seal: Graphite, -200oC… +400oC, -328oF…752oF
A=Pressure component: Not used
AAS=Process Connection: Cl.150 RF Sch.40, flange ASME B16.5
K=Calibration Flow: 0.75% volume 3-point
A1=Device Model: 1
