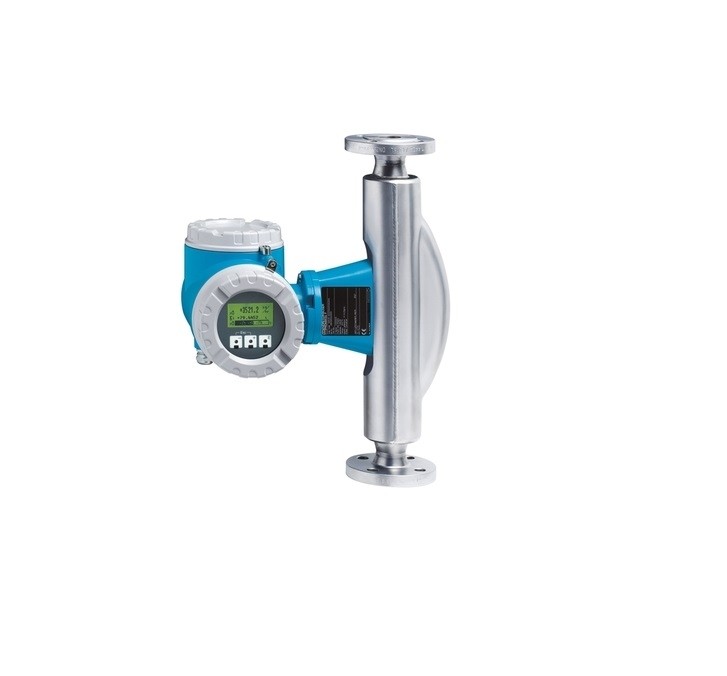

Promass 83F25, DN25 1"
C=Measuring Tube Material: Stainl. steel, mat. certificate (wetted parts)
ABS=Process Connection: Cl.300, 316L/1.4404, flange ANSI B16.5
B=Additional Test, certificate: pressure test (tube) + type test (containment)
A=Calibration: 0.1%, 0.0005g/cc
B=Approval: ATEX II 2GD+ IECEx Z1,21 Ex dia IIC Ex tD A21 Z= Zone
E=Housing: Remote, field IP67 NEMA4X + 10m/30ft Cable
A=Cable Entry: Gland M20 (EEx d > thread M20)
A=Power Supply; Display: 85-260VAC; WEA, 4-line + Touch control WEA= language DE+EN+FR+IT+ES+PT+NL
A=Adjustment; Software Feature: Default liquid; Basic version
G=Output; Input: FOUNDATION Fieldbus, Ex-i /.
