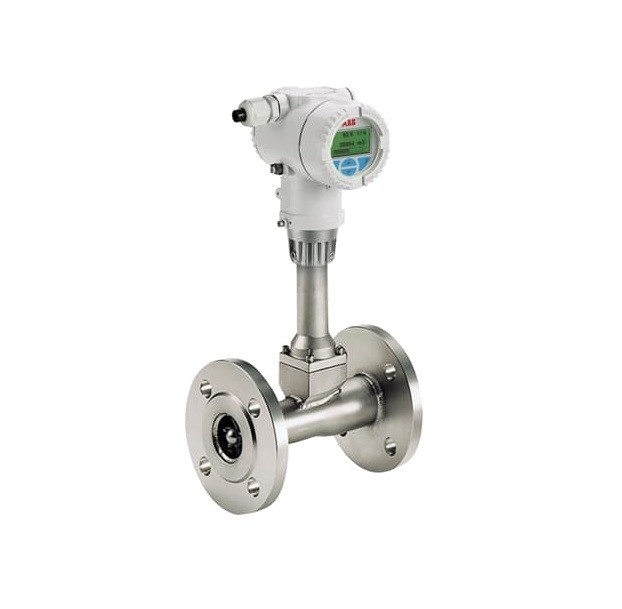

Base model: FSV430
A4=Explosion Protection Certification: ATEX Ex ia / Ex ia (Zone 0 and 20)
C1=System Design: Integral single sensor
F100R0= Process Connection Type / Meter Size / Connection Size: Flange / DN 100 (4 in.) / DN 100 (4 in.)
A3=Pressure Rating: ASME CL 300
A1=Temperature Range of Measuring Medium: Standard −55 to 280 °C (−67 to 536 °F)
S1=Housing Material / Cable Glands: Stainless steel 316L / 2 pcs. metric, M20 × 1.5, cable glands mounted
F1=Output Signal: FOUNDATION fieldbus
L2=Integrated Digital Display (LCD): With Integrated LCD Display with Push Buttons TTG
SP0=Piezo Sensor Sealing Material: PTFE (−20 to 260 °C / −4 to 500 °F)
S1=Surge / Transient Protector: With integral surge / transient protector
C2=Certificates: Material monitoring with inspection certificate 3.1 acc. EN 10204
T1=Device Identification Plate / Certification and Tag Plate: Stainless steel / Stainless steel
M5=Sprache der Dokumentation: English
