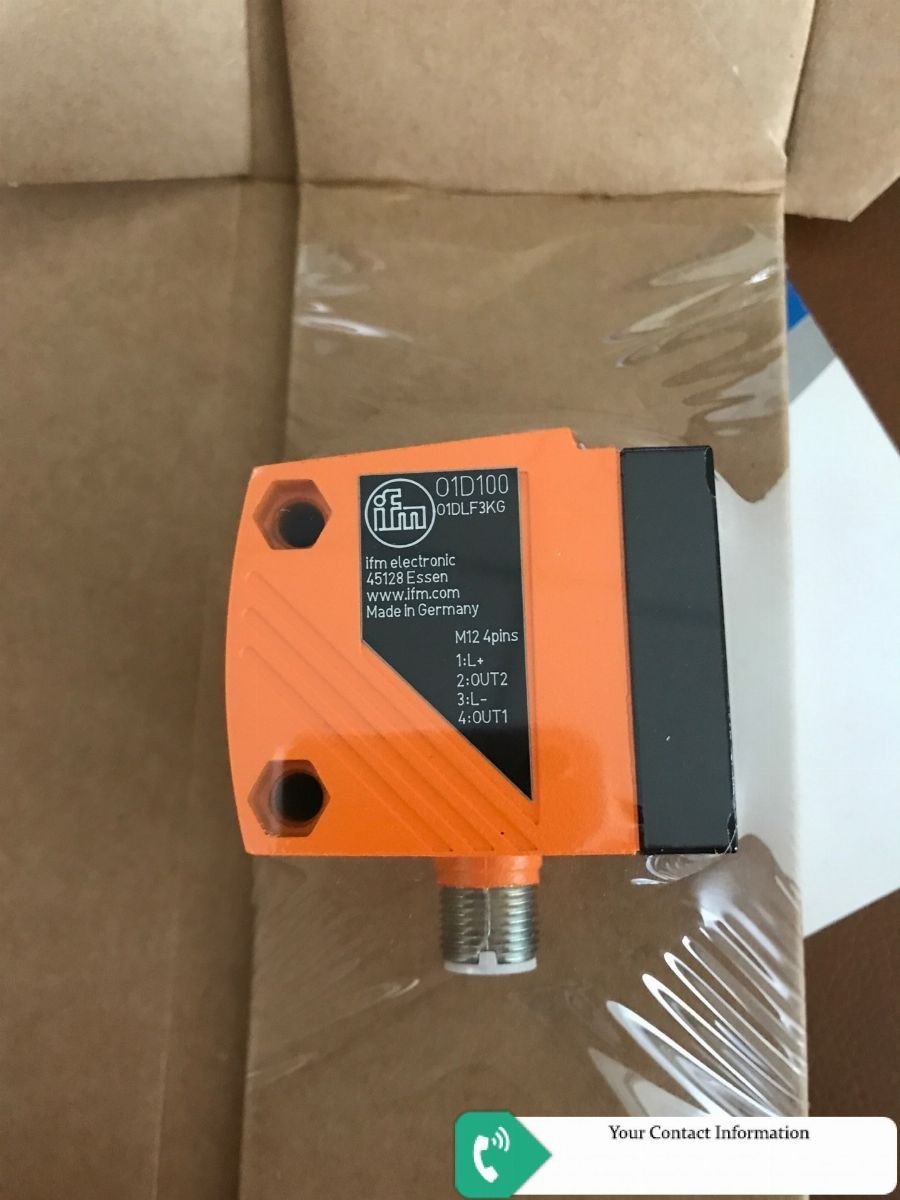

IFM

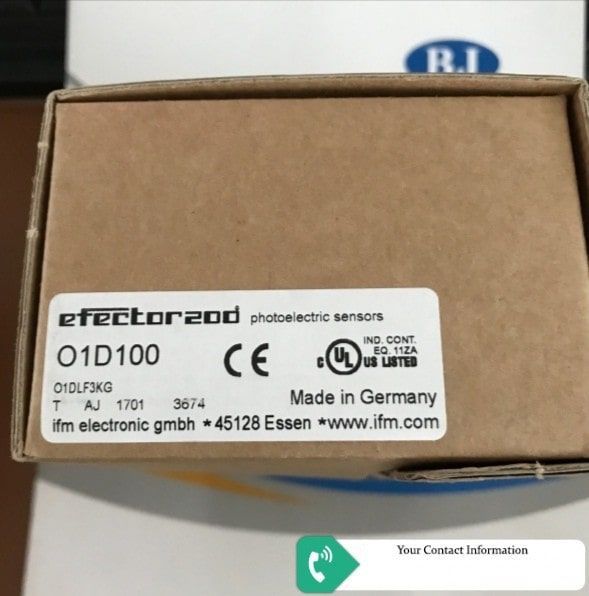

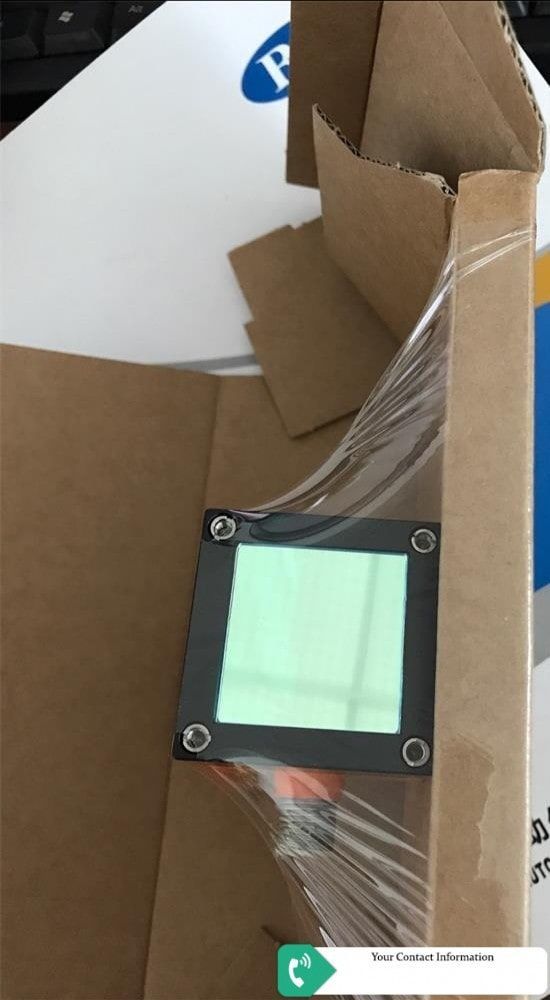

01D100
Photoelectric distance sensor
O1DLF3KG/IO-LINK
Reliable optical distance measurement with high ranges up to 10 m
Two switching outputs, one of them programmable as analogue output
Scalable measuring range and window function
Use in applications with background suppression
Excellent price/performance ratio
Measuring range [m] = 0.2...10; (white paper 200 x 200 mm 90% remission)
Communication interface = IO-Link

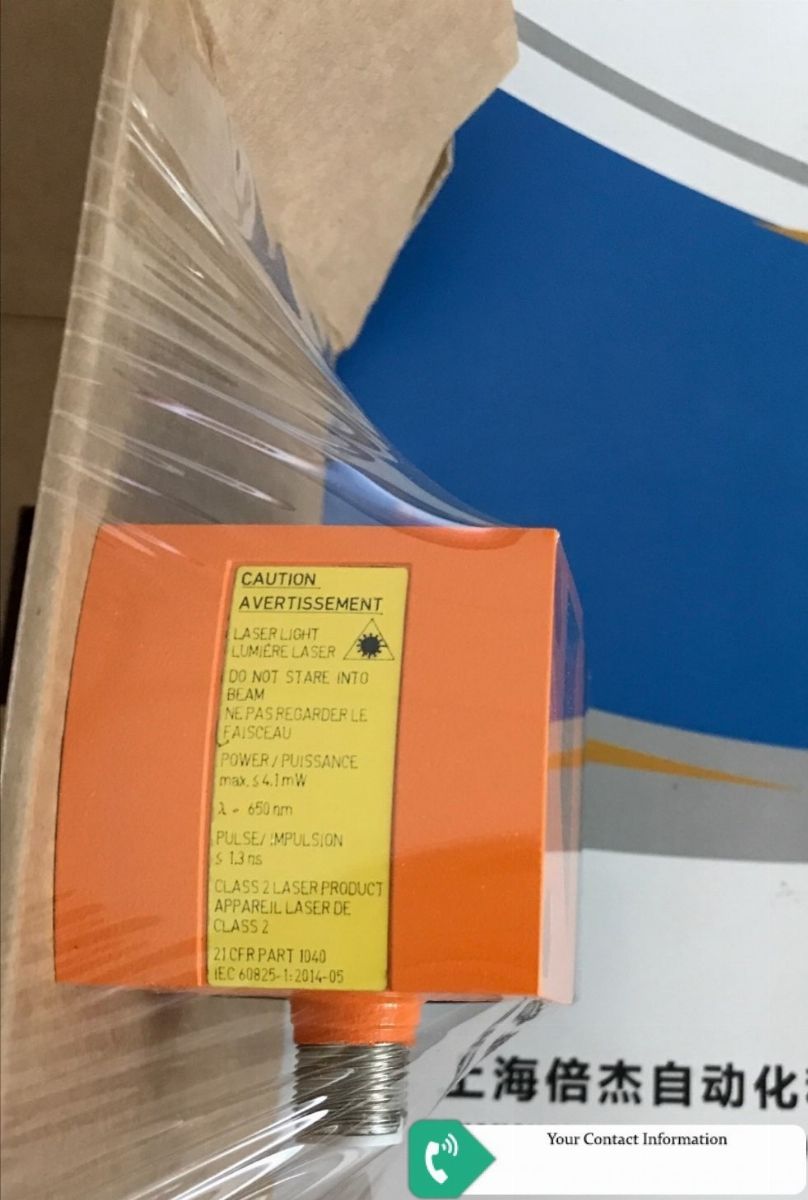

Laser protection class = 2
Housing = rectangular
Dimensions [mm] = 59 x 42 x 52
Total number of outputs = 2
Electrical design = PNP
Number of digital outputs = 2
Output function = normally open / normally closed; (parameterisable)
Measuring range [m] = 0.2...10; (white paper 200 x 200 mm 90% remission)
