Autonics

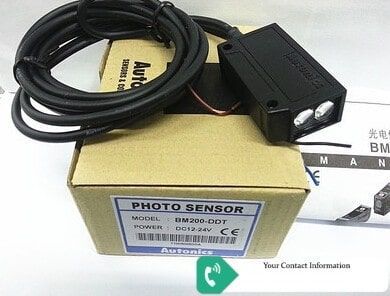

BM200-DDT
Sensing distance = 200mm
Sensing target = Opaque, Translucent material, Transparent material
Light source = Infrared LED(940nm)
Response time = Max. 3ms
Power supply = 12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption = Max. 40mA
Sensitivity adjustment = Sensitivity adjuster
Operation mode = Light ON(option: Dark ON)
Control output = NPN open collector
Connection type = Cable type(Ø4, 2m)
Environment_Ambient illumination = Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature = -10 to 60℃, storage: -25 to 70℃
