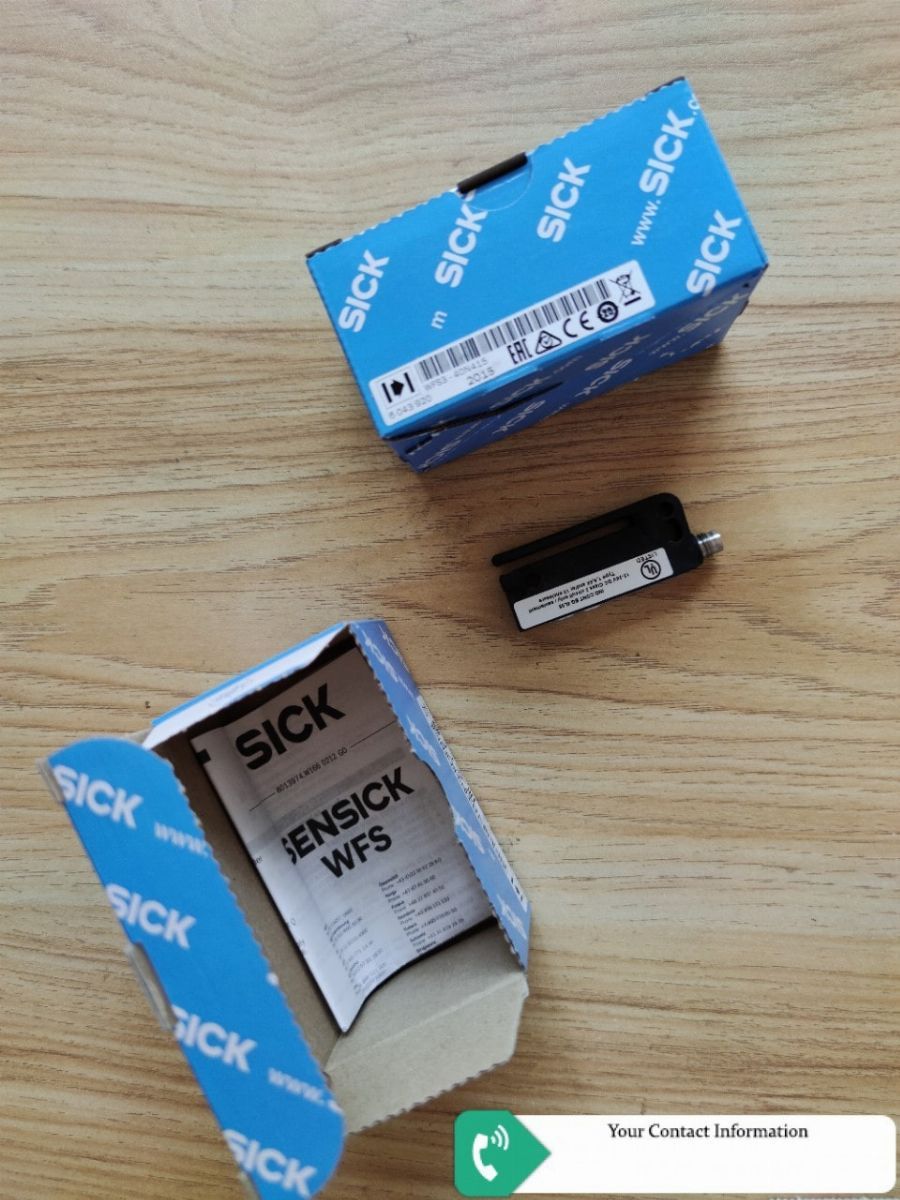

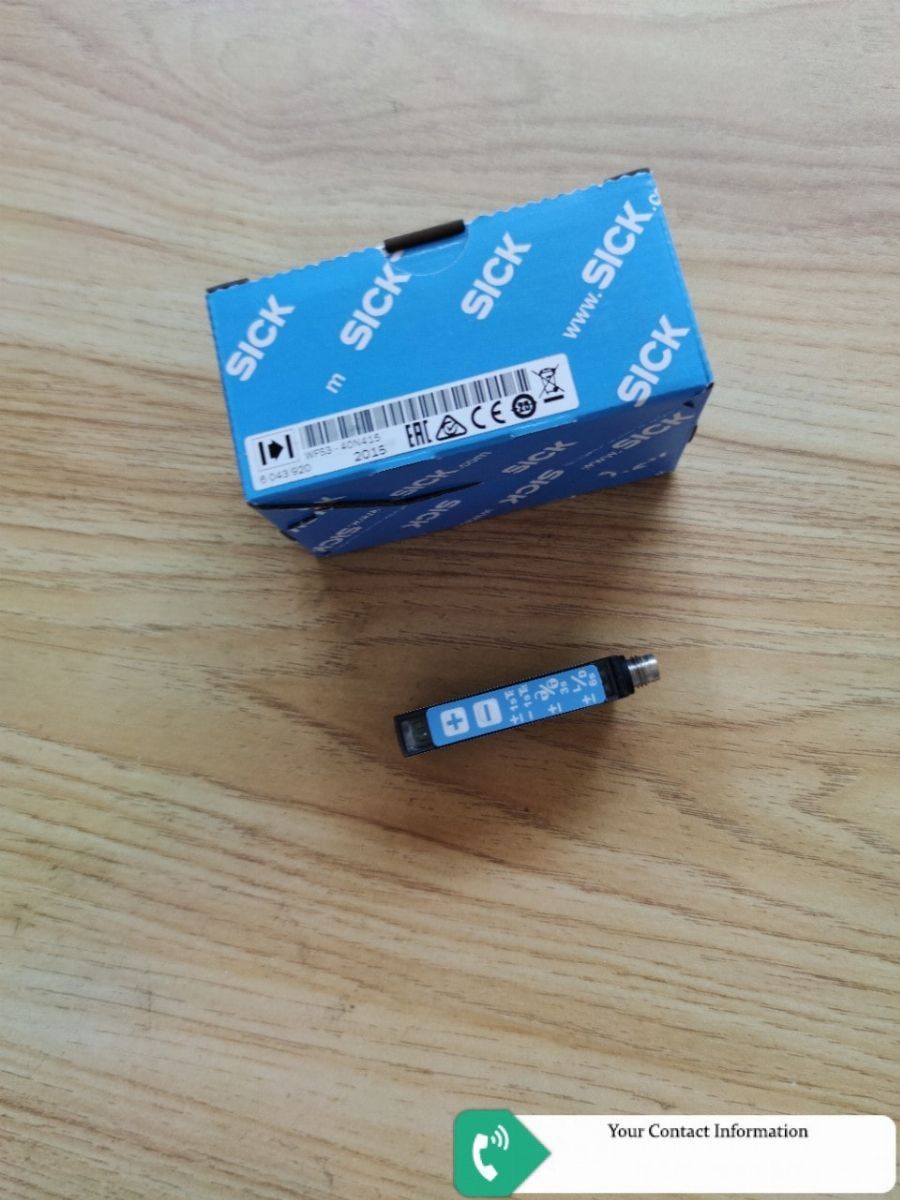

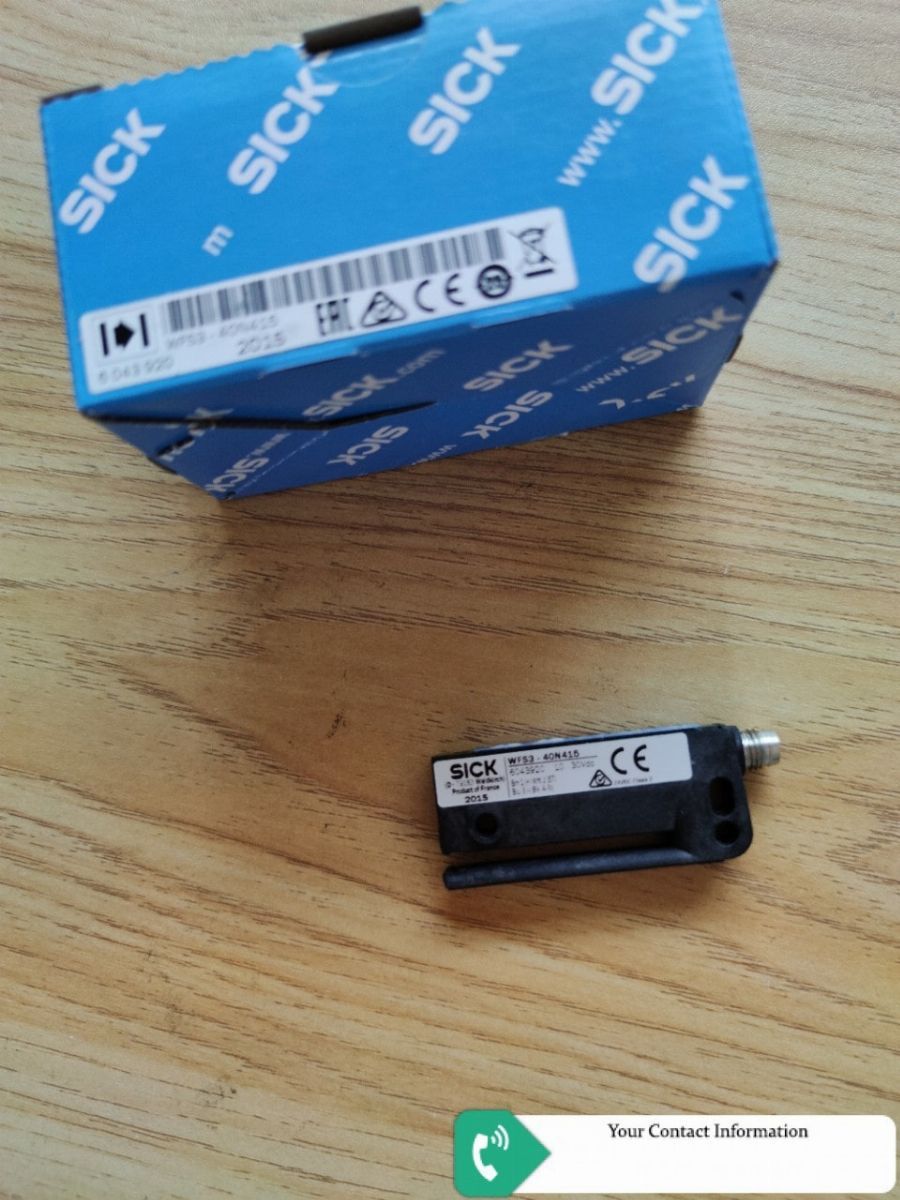

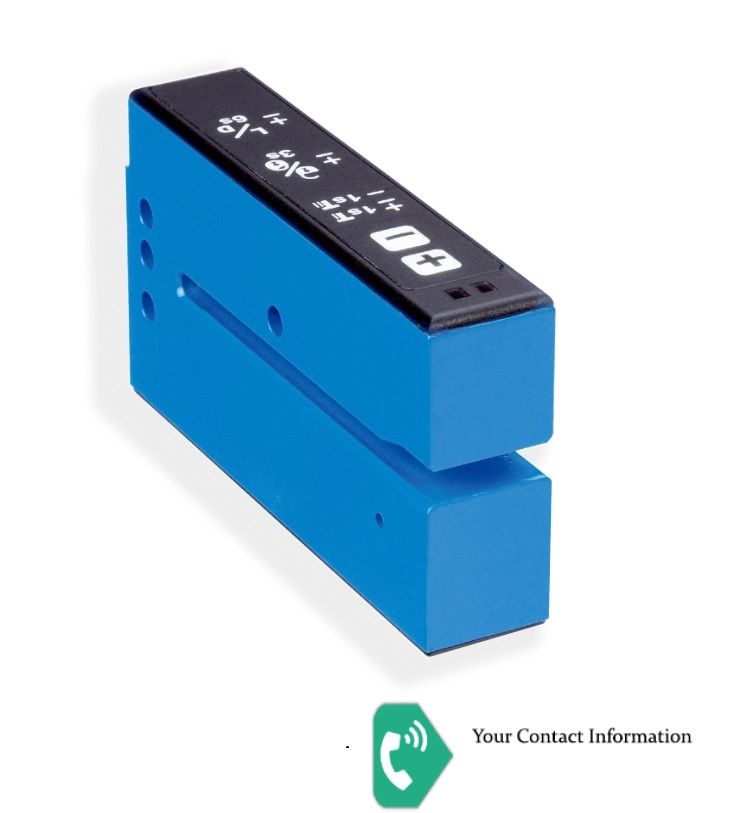

Fork sensors WFS
Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
May not exceed or fall below Uv tolerances.
With light/dark ratio 1:1.
Signal transit time with resistive load.
Functional principle = Optical detection principle
Dimensions (W x H x D) = 10 mm x 25 mm x 64.3 mm
Housing design (light emission) = Fork shaped
Fork width = 3 mm
Fork depth = 42 mm
Minimum detectable object (MDO) = Gap between Labels / Size of labels: 2 mm 1)
Label detection ✔
Light source = LED, Infrared light
Adjustment = Plus/minus button (Teach-in, sensitivity, light/dark switching) Cable (Teach-in dynamic)
Teach-in mode = 2-point teach-in Teach-in dynamic
