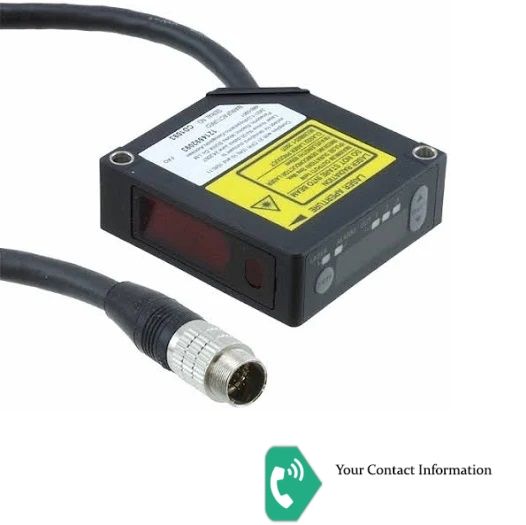

Compact Laser Displacement Sensor
Sensor head (High functionality type)
Type : High functionality type
Measurement center distance : 30 mm 1.181 in
Measurement range : ± 4 mm ± 0.157 in
Resolution : 0.5 μm 0.020 mil
Linearity : ± 0.1 % F.S.
Temprerature characteristics : ± 0.08 % F.S. / ℃
Supply voltage : 24 V DC ± 10 % including ripple 0.5 V (P-P)
Current consumption : 100 mA or less
Sampling rate : 200 μs, 500 μs, 1 ms, 2 ms
